Highlight:
breathable coated fabric material
, long-lasting coated textile
, comfortable breathable textile fabric
Base Fabric Material: |
Shandong, China |
Brand Name: |
JRF |
Base Fabric: |
Polyester, Cotton, Nylon, Fiberglass, Blended |
Coating Type: |
PVC, PU, PE, EVA, PTFE |
Surface Treatment: |
Waterproof, Fireproof, Anti-UV, Anti-static, Anti-mildew, Abrasion-resistant |
Weight (g/m²): |
150 – 1200 (Common: 300–600 G/m²) |
Thickness: |
0.15 Mm – 2.0 Mm |
Width: |
1.00m / 1.50m / 2.00m / 3.20m |
Tensile Strength (Warp）: |
800–4500 N/5cm |
Tensile Strength (Weft): |
500–3500 N/5cm |
Item Typical Range / Value Description Base Fabric Material Shandong, China - Brand Name JRF - Base: |
80–600 N |
Tear Strength (Weft): |
80–600 N |
Hydrostatic Pressure: |
1000–10000 MmH₂O |
Temperature Resistance: |
-30℃ To +80℃ (Up To -50℃ Optional) |
Flame Retardant Grade: |
NFPA 701 / B1 / M1 |
Breathability: |
500–5000 G/m²·24h |
Color Options: |
White, Black, Gray, Green, Custom (Pantone Support) |
Surface Finish: |
Matte / Semi-matte / Glossy / High-gloss |
Mold Resistance: |
Grade 0 – 5 (Up To 3A Industrial Standard) |
UV Protection: |
UPF 30+ / 50+ / 100+ |
Service Life: |
3 – 10 Years |
Environmental Certification: |
ROHS / REACH / OEKO-TEX / EN-71 |

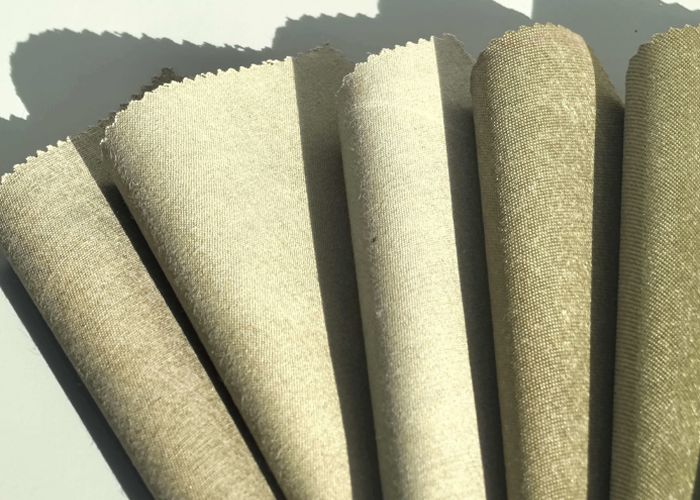

coated Fabric Product ntroduction
Coated fabric is a funcionalcomposite material made by coaing polyester,coton,fiberglass cloth, or ther simlar materials with Pvc, PU,PE, siicne, or acplic materials.ltcombines the mechanical strength of the texle base withthe protective properies of the coaing, achieving a variety of characteristics such as waterproofing, oil resistance.abrasion resistance, flame relardancy,tear resistance, anibacterial properies,and UV resistance. tis widely usd in industrial equipment protecion,medical dressings, outdoolproducts.transport2nctocnnica teyiec
Coated fabric product parameters
| Item |
Typical Range / Value |
Description |
| Base fabric material |
Shandong, China |
- |
| Brand Name |
JRF |
- |
| Base Fabric |
Polyester, Cotton, Nylon, Fiberglass, Blended |
Selected according to application |
| Coating Type |
PVC, PU, PE, EVA, PTFE |
Different coatings for different performance |
| Surface Treatment |
Waterproof, Fireproof, Anti-UV, Anti-static, Anti-mildew, Abrasion-resistant |
Customizable functions |
| Weight (g/m²) |
150 – 1200 (Common: 300–600 g/m²) |
Customizable |
| Thickness |
0.15 mm – 2.0 mm |
Can be increased by lamination |
| Width |
1.00m / 1.50m / 2.00m / 3.20m |
Supports customized cutting |
| Tensile Strength (Warp) |
800–4500 N/5cm |
EN ISO 1421 Standard |
| Tensile Strength (Weft) |
500–3500 N/5cm |
EN ISO 1421 Standard |
| Tear Strength (Warp) |
80–600 N |
ASTM D751 Standard |
| Tear Strength (Weft) |
80–600 N |
ASTM D751 Standard |
| Hydrostatic Pressure |
1000–10000 mmH₂O |
Waterproof rating |
| Temperature Resistance |
-30℃ to +80℃ (Up to -50℃ optional) |
Outdoor performance |
| Flame Retardant Grade |
NFPA 701 / B1 / M1 |
Certificates available |
| Breathability |
500–5000 g/m²·24h |
PU/TPU breathable |
| Color Options |
White, Black, Gray, Green, Custom (Pantone support) |
Customizable |
| Surface Finish |
Matte / Semi-matte / Glossy / High-gloss |
Optional |
| Mold Resistance |
Grade 0 – 5 (Up to 3A Industrial Standard) |
Anti-mildew test |
| UV Protection |
UPF 30+ / 50+ / 100+ |
For outdoor use |
| Service Life |
3 – 10 years |
Depends on usage environment |
| Environmental Certification |
ROHS / REACH / OEKO-TEX / EN-71 |
Reports available |
Features of coated fabric products
Coated fabnic posseses high strengh, waterproof, corosion-resisitanl, weaher-resistant, customizable fame-retardant and enronmentaly friendly properies,making itsuitalblefor various industrial and outdoor environments. it is a cost-effective, long-lasting, and fexible functional material.
Coated Fabric Product Cases
Case Study: Solving Pain Points of Medical Dressing Fixation Patches – “Edge Rolling Off, Insufficient Hypoallergenicity, and Poor Breathability” A medical consumables manufacturer previously faced core complaints regarding its wound dressing fixation patches: the uneven adhesive distribution of traditional single-layer coated fabrics led to edge rolling off due to patient joint movement and sweating, causing dressing displacement and requiring frequent replacements.
To address these needs, we customized a highly breathable and hypoallergenic single-layer coated fabric solution.
After product implementation, the stability of the medical dressing fixation patches significantly improved, resulting in a 50% month-on-month increase in orders for the manufacturer and a significant enhancement of their market competitiveness.
About Us
Shandong Jiurunfa Chemical Technology Co., Ltd. is a manufacturing enterprise specializing in coated fabric production and functional fabric R&D, possessing years of industry experience and a comprehensive production management system. The company has introduced multiple automated coating production lines, established an independent laboratory, and collaborates with several research institutions to continuously develop high-performance, environmentally friendly, and industry-specific coating materials to meet the diverse needs of the global market.
We not only produce coated fabrics, but also provide solutions.
Each product is designed based on actual application scenarios, helping customers reduce costs, improve product performance, and enhance market competitiveness.
